Home Heat Transfer ZX-870T Cutting Plotter

ZX-870T Cutting Plotter

ZX Vinyl Cutter 34 Inch Plotter Machine Signmaster PC ONLY Software Sign Making Machine 870mm Paper Feed Vinyl Cutter Plotter with Stand

PRODUCT SIZE- 34-inch vinyl cutter with maximum paper feed of 870mm (34 inch). Maximum cutting width: 760mm (30 inch).

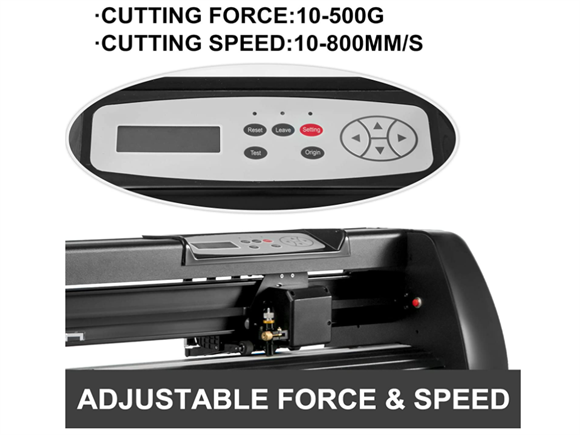

ADJUSTABLE SPEED- Plotter machine cutter pressure: 10-500g. Cutting speed: 10-800mm per second. Both adjustable.
EMERGENCY STOP- Backlight LCD display for easier handling the working process of sign cutting machine. Emergency stop/start function allows stop and restart

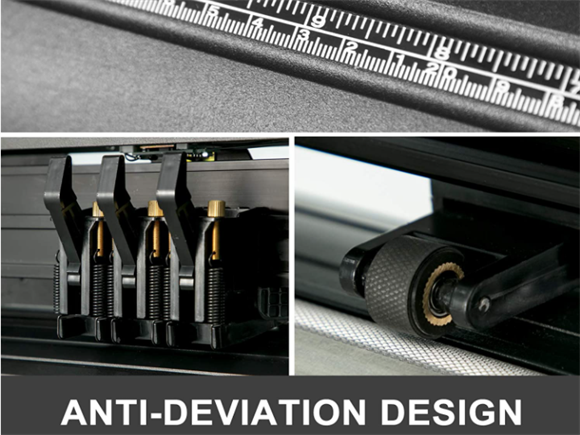

SUPERIOR ROLLER SYSTEM- 3 pinch-rollers on this vinyl cutter plotter machine can be adjusted on the guide rail according to different paper widths, superior ball-bearing dual roller media roller system.
WIDELY APPLICATION- Vinyl cutter machine, suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, etc. NOT compatible with Mac system.

Request A Quote

Product Parameters

	1	2	3	4
Model No.	375T	720T	870T	1350T
Size	14″	28″	34″	53″
Size	375mm	720mm	870mm	1350mm
Number of Pinch Rollers	2	3	3+1	3+2
Max Cutting Width	10″	24.80″	30.63″	49.56″
Max Feed Width	14″	28″	34″	53″
Shipped Weight/KG	11	21	23	28
Packing Size/LWH/CM	653332	1004236	1173342	1643441
Power Requirement	AC100-240V 50/60Hz Auto-switching(Worldwide)
Blade Types	Standard, Roland Compatible
Pressure/grams	10-500
Max Speed/in/sec	48
Driving Method	Stepper Motor

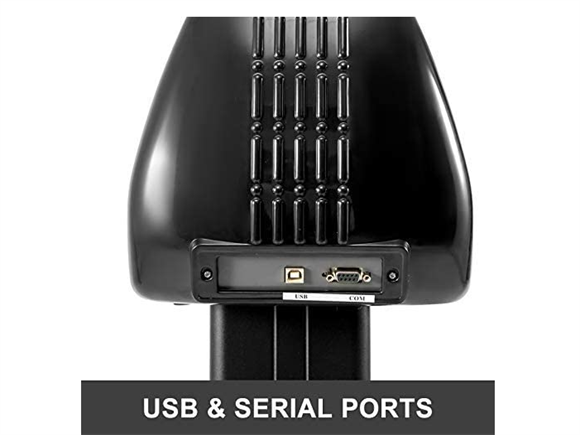

Interface	SERIAL, USB
Included Items1	Vinyl Cutter, 3-pack of Blades, Blade Holder, Pen Attachment,
Included Items2	Serial Cable, USB Cable, Power Cable, Sure Cuts a Lot Pro Design & Cut Software
Control Language	DM/PL, HP/GL Language
Battery	AC-90V-240V 60Hz 60W
Roller Mechanism	Fine Grit Feed Rollers
