ZX-720T Cutting Plotter

ZX Vinyl Cutter 28 Inch Vinyl Cutter Machine 720mm Paper Feed Vinyl Plotters with Floor Stand Vinyl Plotter Adjustable Speed for Sign Making

Highlights

  • [CUTTING CAPACITY] - 28-inch vinyl cutter with maximum paper feed of 720mm (28.3") maximum cutting width of 630mm (24.8"), cutting precision of +/-0.01mm(0.0004"), and paper feed precision of 3m(118").

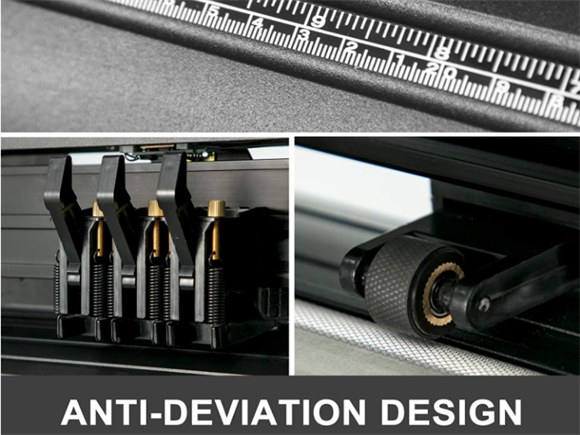

  • [STRONG STABILITY] - The vinyl plotter adopts D-typed motherboard and 128K-2M high-speed cache memory. 2 double-spring pinch rollers and aluminum knurling stick ensure that the paper feed will not deviate by long distance.

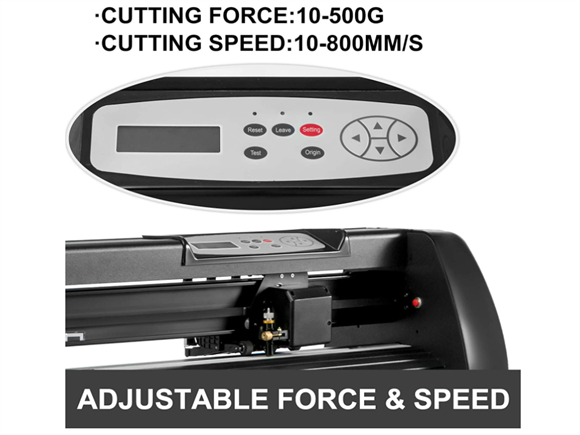

  • [DIGITAL CONTROL] - Comes with illuminated LCD screen and large control panel. With cutting pressure 10-500g adjustable, and cutting speed 10-800mm/s adjustable.
  • [HIGH COMPATIBILITY] - Available with COMPIM and USB interface for more precise control. Supports DM/PL, HP/GL language. System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32& 64). NOT compatible with Mac system.
  • [WIDELY USED] - The vinyl cutter printer can be used in advertisement field, various decorations, handcraft, supplementary for heat transfer, label & sign making, etc.
  • CE
  • iSET
  • EMC²
  • RoHS
Request A Quote

Product Parameters

1 2 3 4
Model No. 375T 720T 870T 1350T
Size 14″ 28″ 34″ 53″
Size 375mm 720mm 870mm 1350mm
Number of Pinch Rollers 2 3 3+1 3+2
Max Cutting Width 10″ 24.80″ 30.63″ 49.56″
Max Feed Width 14″ 28″ 34″ 53″
Shipped Weight/KG 11 21 23 28
Packing Size/LWH/CM 65*33*32 100*42*36 117*33*42 164*34*41
Power Requirement AC100-240V 50/60Hz Auto-switching(Worldwide)
Blade Types Standard, Roland Compatible
Pressure/grams 10-500
Max Speed/in/sec 48
Driving Method Stepper Motor
Interface SERIAL, USB
Included Items1 Vinyl Cutter, 3-pack of Blades, Blade Holder, Pen Attachment,
Included Items2 Serial Cable, USB Cable, Power Cable, Sure Cuts a Lot Pro Design & Cut Software
Control Language DM/PL, HP/GL Language
Battery AC-90V-240V 60Hz 60W
Roller Mechanism Fine Grit Feed Rollers
