ZX-230HT Mechanical Ultrasonic Cleaner

ZX-230HT Mechanical Ultrasonic Cleaner with Timer and Temperature Controls is ideal for job shops, large practice and institutional sterilization areas and labs.  The easy to use timer can be set for up to 20 minutes for cleaning cycles while the temperature controller maintains optimum cavitating temperatures.

Highlights

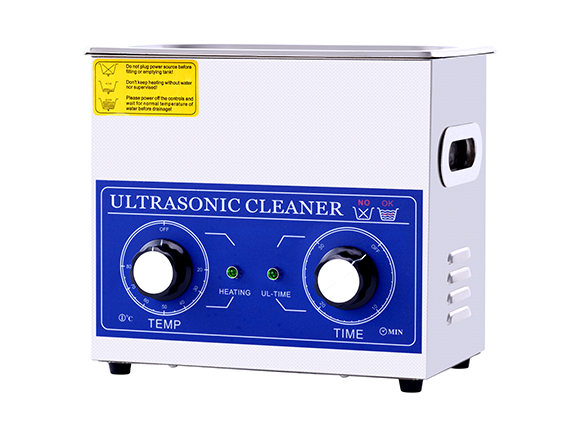

  • Knob design panel with timer and heater, for precise wash time and temperature control, more user-friendly and spand long-life.
  • Worked with 120W high-power ultrasonic transducer which provide more stable performance, higher conversion rate, higher cavitation effect, better cleaning effect.
  • Industrial grade integrated circut, isolated-circuit design, good capability of waterproof.
  • 304 superior embossed shell, durable and heat resistance stainless steel construction.

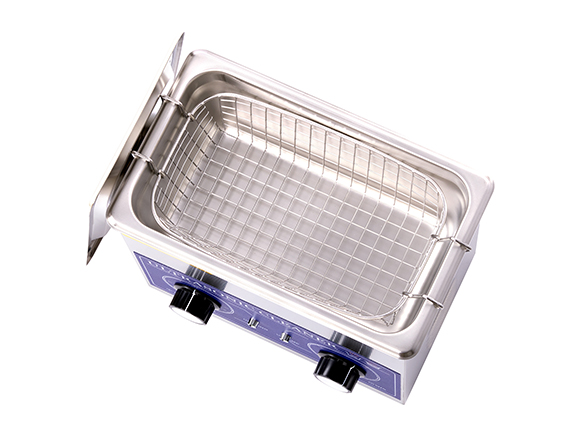

  • Stainless steel tank with 3.2L, sturdy for long term use. Comes with a basket to reduce the friction between objects and tanks to get objects out more easily.
Request A Quote

Product Parameters

ZX 615HT 6 ZX 822HT 2 ZX 1030HT 5
ZX-120HT ZX-230HT ZX-360HT ZX-410HT ZX-615HT ZX-822HT ZX-1030HT
Heat Power/W 100 100 100 300 400 500 500
Transducer Quantity/Set 1 2 3 4 6 8 10
Tank Capacity/L 2 3.2 6.5 10 15 22 30
Ultrasonic Power 60 120 180 240 360 480 600
Tank Material Stainless Steel SUS304
Frequency 40kHz
Power Supply AC220V/AC110V 50Hz
Time Setting 1-99 Minutes
Temperature Setting 0-80 Degrees Celsius
Tank Size/L*W*H(mm) 150*140*100 240*140*100 300*155*150 300*240*150 330*300*150 500*300*150 500*300*200
Cleaner Size/L*M*H 190*170*230 274*170*240 330*180*330 330*270*330 360*330*330 550*330*330 550*330*380
