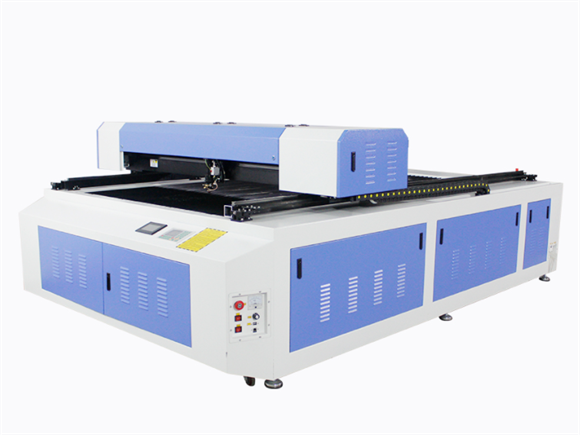

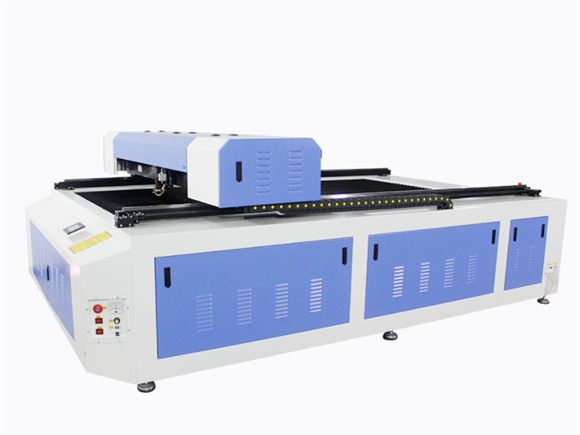

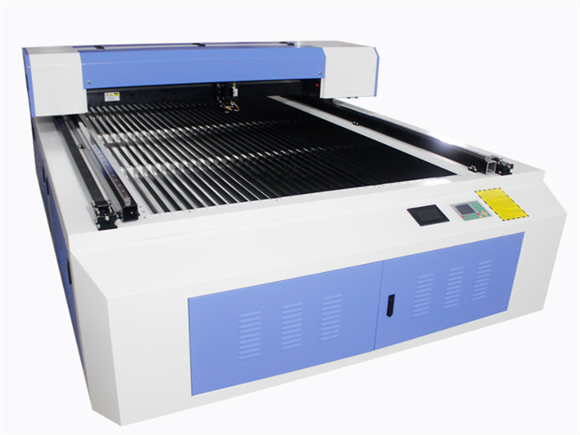

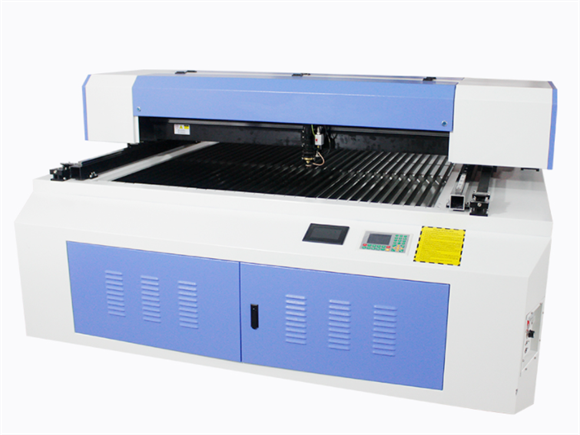

1325 CO2 Laser Cutters

ZX 1325 Acrylic wood mdf cardboard plastic rubber PVC foam fabric leather metal CO2 Laser cutting machine

Highlights

  • Mix Cutting: It supports both metal and non-metal Cutting, can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board, paper, fabric, etc.
  • Adopt 150W / 180W/ 260W/ 300W Laser Tube, high power.
  • Dynamic Auto-focusing Metal Sheet Laser Cutting Head: when the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
  • Advanced LCD Touch Screen + USB Port + DSP Offline Control: which can not only work without the computer but also connect to U disk, USB communication.
  • Matched professional cutting software: MetalCut is particularly designed and written for both metal and non-metal cutting, with high compatibility, support Windows operating system.
  • CE
  • iSET
  • EMC²
  • RoHS
Request A Quote

Product Parameters

1 2
Model No. ZX-1325 ZX-1530
Laser Power/W 60W/80W/100W/130W/150W 1000W/1500W/2000W/3000W
Working Area 1300*2500mm 1500*3000mm
Cutting Speed 1-300mm/s 1-150mm/s
Engraving Speed 1-1024mm/s Depend on laser power
Cutting Depth 0-2mm(Depend on materials) 0-30mm(Depend on materials)
Engraving Depth 0-20mm(Depend on materials) Depend on laser power
Power Supply AC220V/110V 50HZ AC380V/50HZ
Laser Type Sealed CO2laser Tube Fiber Laser Generator
Software Supported WindowsXP/WIN7/WIN10 CypCut control system
Worktable Multifunctional work table Cast Aluminum Beam
Cooling Water Cooling Water Cooling
Product Dimensions 3200*2010*1140mm 4500*2200*1500mm
Product Weight/Kg 840 3200
