1390 130W Laser Engraving Machine

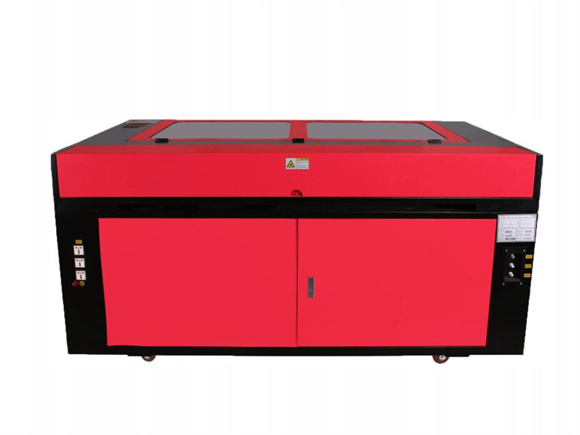

ZX 130w RECI W4 CO2 Laser Cutter Laser Engraving Machine 1390×900mm Working Area with S&A Water Chiller

Laser Power: 130W; Engraving Area: 35-7/16''×23-5/8''(900*600mm); Max. Engraving Speed: 0-600 mm/s. Max. Cutting Speed: 0-300 mm/s. Repeat Positioning Accuracy: ±0.01mm

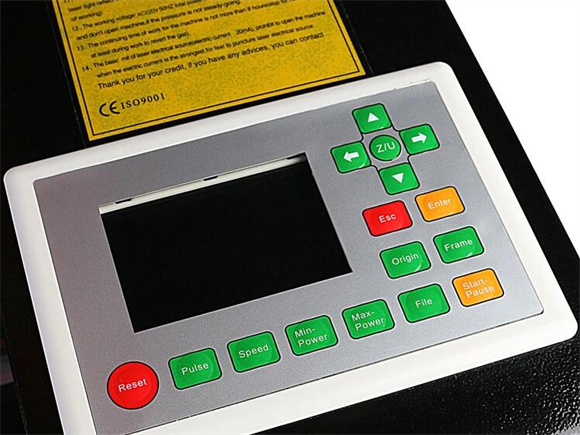

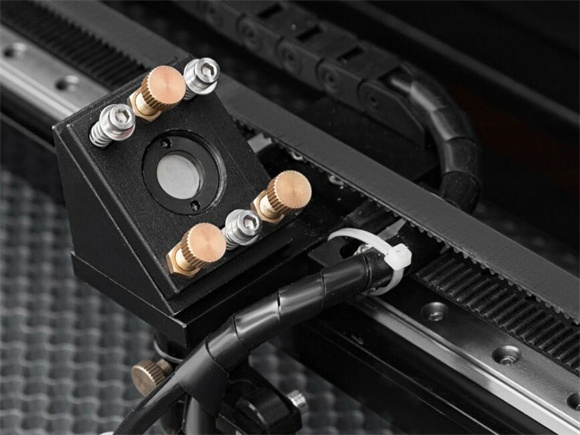

- Laser Source: RECI W4 CO2 Laser Tube; Control System: Ruida DSP; Focusing Lens and Mirrors: American Ⅱ-Ⅳ and Singapore Wavelength; Stepper Motor&Driver: YAKO; Guide: PMI Linear Guide; Water Cycle Cooling: S&A Water Chiller CW5000.
Engraving or Cutting Materials: Wood, Bamboo, Plexiglas, Crystal, Leather, Rubber, Marble, Ceramics, Nonmetals, etc.
File Format: plt./dst./dxf./bmp./dwg./ai./las. Support AutoCAD, CorelDraw Output Directly
1 Year Warranty; Customer and Technical Support. Software CD and Video Training Enclosed.

Request A Quote

Product Parameters

	1	2	3	4	5
Model No.	ZX-3020	ZX-6040	ZX-7050	ZX-9060	ZX-1390
Laser Power/W	40	60	80	100	130
Engraving Area	12″×8″	24″×16″	28″×20″	35″×24″	53″×36″
Working Area/cm	30×20	60×40	70×50	90×60	130×90
Product Dimensions/cm	805025	1407464	1468595	150108110	150108110
Product Weight/Kgs	38	80	180	270	360
Power Supply	AC220±10% 50Hz / AC110±10% 50Hz
Water Cooling	Water Cooling and Protection System
Motor Type	Stepper Motor
Interface to Computer	USB2.0/USB Disk
System Environment	WIN 2000/WIN 7/WIN 8/WIN 10			SHENZHOUYI/DSP
Software Supported	CorelDraw	RDdraw/CorelDraw/AutoCAD
Worktable	×	Up & Down table
× non
